Elasticache

The Elasticache version of Valkey has restrictions on what commands can be run, one of which is ACL SETUSER. We create a more secure storage environment by creating a new user for each watt that is deployed. To do this with Elasticache we need to use the AWS SDK CreateUserCommand to create users.

In addition, for change notifications from Valkey to work correctly, the following parameter group must be added: notify-keyspace-events = AKE

Here is a bit of terraform that can be used to add this parameter group:

resource "aws_elasticache_parameter_group" "default" {
  name   = "platformatic"
  family = "valkey8"
  parameter {
    name  = "notify-keyspace-events"
    value = "AKE"
  }
}

A parameter group can also be configured through the AWS CLI or AWS Console.

Configuration

Assuming a role

Start by creating an AWS Policy that allows for the required access:

{
  "Statement": [
    {
      "Action": [
        "elasticache:CreateUser",
        "elasticache:DeleteUser",
        "elasticache:DescribeUsers",
        "elasticache:ModifyUser",
        "elasticache:CreateUserGroup",
        "elasticache:DeleteUserGroup",
        "elasticache:DescribeUserGroups",
        "elasticache:ModifyUserGroup",
        "elasticache:DescribeCacheClusters"
      ],
      "Effect": "Allow",
      "Resource": "*"
    }
  ],
  "Version": "2012-10-17"
}

Next, create a role (platformatic-eks-elasticache) with the following Trust Relationship:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::${account_id}:oidc-provider/${oidc_endpoint}"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "${oidc_endpoint}:aud": "sts.amazonaws.com",
          "${oidc_endpoint}:sub": "system:serviceaccount:platformatic:platformatic"
        }
      }
    }
  ]
}

Make sure that Statement[0].Principal.Federated is set to the correct OIDC Endpoint ARN.

Replace <account_id> with the correct AWS account

Replace <oidc_endpoint> with the output from:

aws eks describe-cluster \
  --name platformatic \
  --query "cluster.identity.oidc.issuer" \
  --output text

The platformatic-eks-elasticache ARN will be

Finally, configure a YAML (elasticache.yaml) or update the existing platformatic-values.yaml with the following structure:

services:
  icc:
      elasticache:
        role_arn: ""
        region: ""
        cluster_name: ""

Finding a cluster name

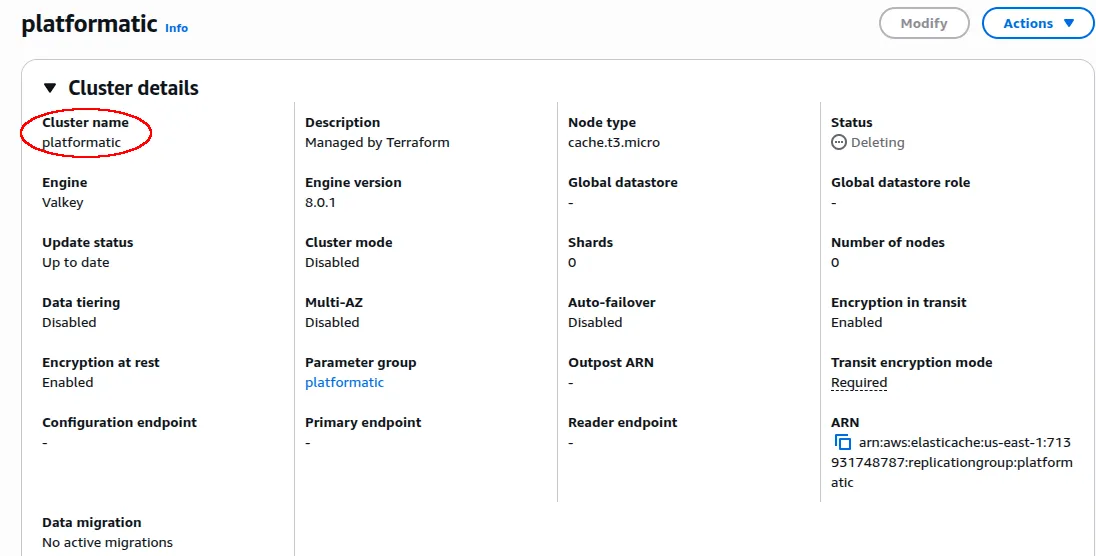

Visit the AWS Console find a cluster in the list. That is the name that is needed for PLT_CONTROL_PLANE_ELASTICACHE_CLUSTERID_PREFIX . Below is a screenshot of the cluster details.

An alternative is to use the AWS CLI to get a list of all available caches:

aws elasticache describe-cache-clusters --query "CacheClusters[].CacheSubnetGroupName"
