Planner

Enterprise Feature

This feature is only available in Enterprise Edition

The Planner prepares capacity for recurring or known future demand. It learns how many application instances an application normally needs in each calendar window, presents the evidence as forecasts and suggestions, and turns operator-approved actions into temporary minimum instance counts.

The Planner is available only with the Predictive scaler:

PLT_SCALER_ALGORITHM_VERSION=v2

The Planner does not replace live scaling.

Component	Question	Horizon	Output
Predictive scaler	How many instances will be needed when another instance becomes ready?	Seconds	Live target replica count
Planner	How many instances are normally needed in this calendar window?	Days and weeks	Forecasts and suggested minimum instance counts
Custom schedule	What capacity does an operator already know will be needed?	A known future event	Operator-defined minimum instance count

A scheduled value is a minimum, not a fixed replica count. V2 can always scale above it when live demand requires more capacity.

Planner view

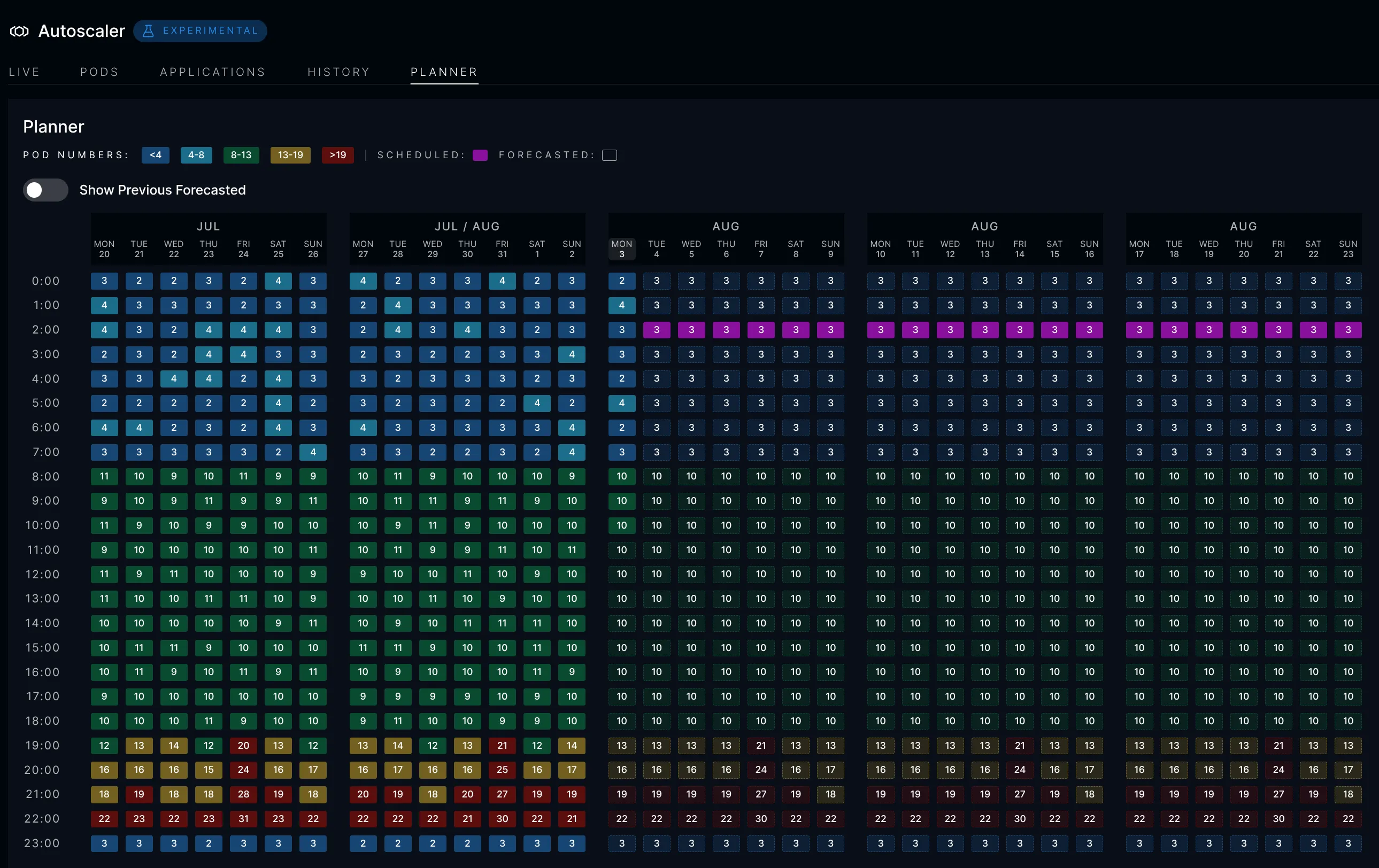

The Planner tab combines recent history, future forecasts, and active schedules in one calendar. Weeks run horizontally, time windows run vertically, and each cell contains the instance count for that window.

Cell treatment	Meaning
Solid	Capacity observed in a historical window
Translucent with a dashed border	Forecast capacity
Purple	Floor created by an accepted suggestion or custom schedule
Diagonal split	Previous forecast compared with the capacity later observed

The five color bands are calculated from the application’s own capacity distribution. The legend always shows the actual instance ranges, so a high-capacity window stands out whether an application normally runs 3 instances or 100.

Enable Show Previous Forecasted to compare historical forecasts with later observations. This makes repeated under- or over-prediction visible instead of replacing old forecasts with a newly calculated history.

Terms

Term	Meaning	Default size or horizon
Time slot	Small interval in which ICC collects live instance targets	5 minutes
Time window	Planning unit built from several time slots	60 minutes
Prediction	Forecast instance requirement for one future window	Up to 60 days
Suggestion	Recurring rule proposed by the pattern predictor	Requires operator acceptance
Custom schedule	One-time or recurring rule created by an operator	Operator-defined
Scheduled slot	Concrete occurrence produced from an active schedule	One planning window
Minimum instance count	Temporary minimum applied while a scheduled slot is active	Clamped by hard limits

How history becomes a plan

The end-to-end flow is:

Stage	Input	Result
1. Collect	V2’s raw required count and actual replicas	Time-slot samples
2. Aggregate	Time-weighted slot percentiles	Historical planning windows
3. Model	Windows for the same local time across days	Baseline and recurring calendar patterns
4. Forecast	Baseline plus matching patterns	Future instance predictions
5. Review	Recurring patterns and their evidence	Operator suggestions
6. Schedule	Accepted suggestions and custom events	Concrete scheduled slots
7. Apply	Active scheduled slot plus hard limits	Temporary minimum for V2

1. Record required and actual capacity

The Planner learns capacity rather than request count. The same request rate could represent cache hits, database work, or expensive server-side rendering; each has a different effect on a Node.js process.

For every live decision, V2 provides two values:

• required instances (unclamped): the scaler’s raw target before hard limits, per-decision step limits, and cooldowns;
• actual instances: replicas running at that moment.

The unclamped value preserves unmet demand. For example, if a hard maximum holds an application at 20 instances while the workload needs 27, the Planner records 27 as required and 20 as actual.

2. Build planning windows

ICC first calculates time-weighted percentiles for required and actual instances in each time slot. Time weighting prevents a brief target from having the same influence as a value that lasted for most of the slot.

At the end of a time window, ICC selects the configured percentile from every included slot, averages those values, and stores one historical record. The default p50 reflects typical capacity; a higher percentile produces a more conservative plan.

3. Separate baseline from calendar patterns

Each time of day is modeled independently using up to one year of its history. The predictor establishes a robust rolling baseline, then looks for recurring deviations associated with calendar scopes, such as a particular weekday. It repeatedly separates baseline and pattern contributions so a Friday peak does not inflate the everyday baseline.

This produces two useful kinds of behavior:

Model result	Meaning	Example
Baseline	Capacity normally needed in this window	Every day, 17:00–18:00: 13 instances
Scoped pattern	Recurring exception to the baseline	Every Friday, 17:00–18:00: 21 instances

The forecast for a future window combines its projected baseline with the patterns matching that date. Suggested instance counts are kept within the application’s configured hard range.

4. Refresh forecasts

By default, the Planner writes predictions for the next 60 days. They are regenerated:

• when the scaler leader starts;
• after midnight in the configured cluster timezone;
• after application scaling limits change;
• when POST /applications/:applicationId/predictions requests an application refresh.

Forecasts remain informational. They do not change scaling until an operator accepts a suggestion or creates a custom schedule.

Review suggestions

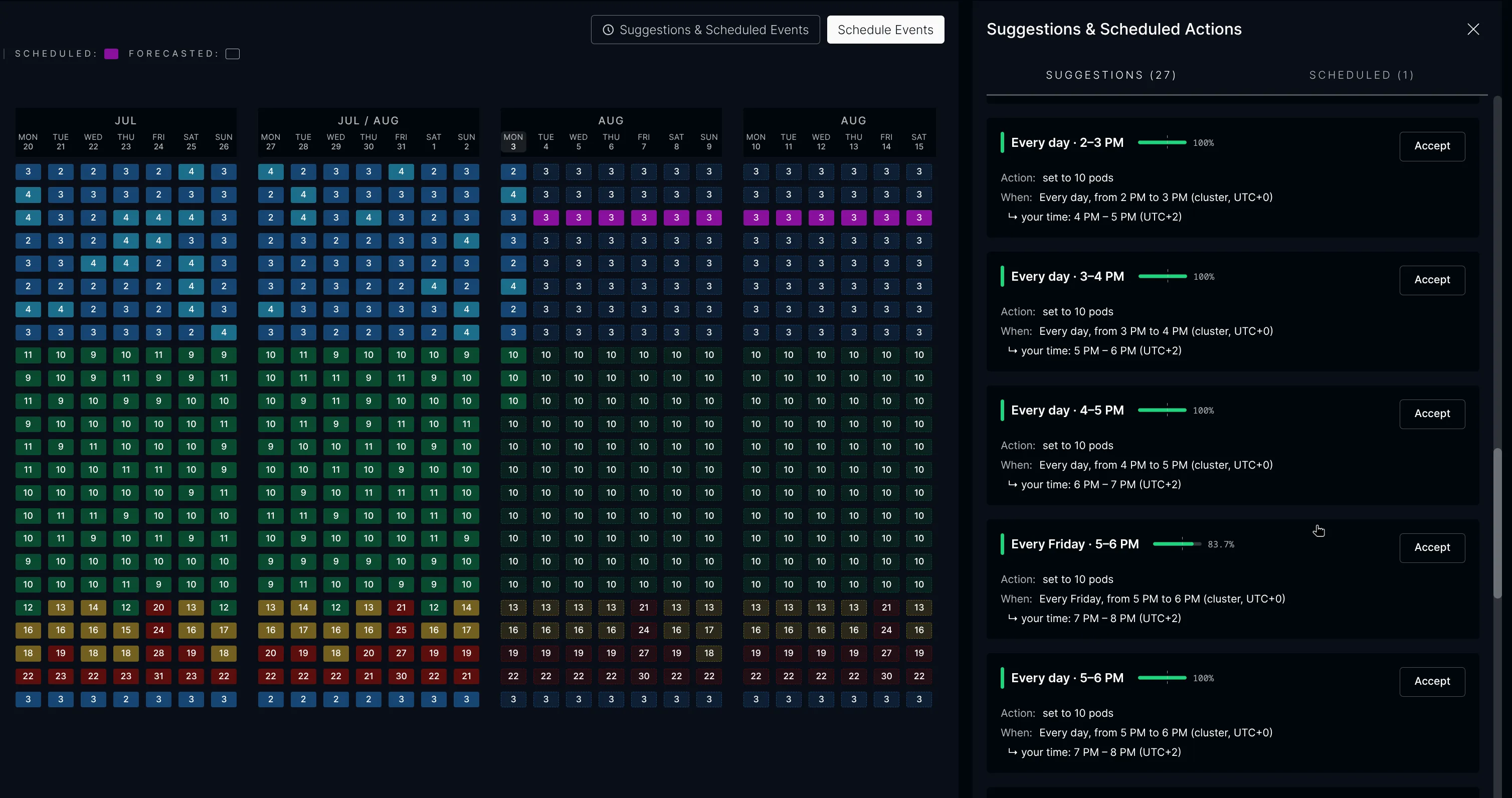

Open Suggestions & Scheduled Actions to review detected recurring demand. Each card describes the recurrence, proposed minimum instance count, applicable timezone, and confidence derived from its historical consistency.

The complete floor is shown, not a delta that must be combined manually. If the everyday baseline is 13 instances and Friday needs 8 additional instances, the Friday suggestion says 21 instances.

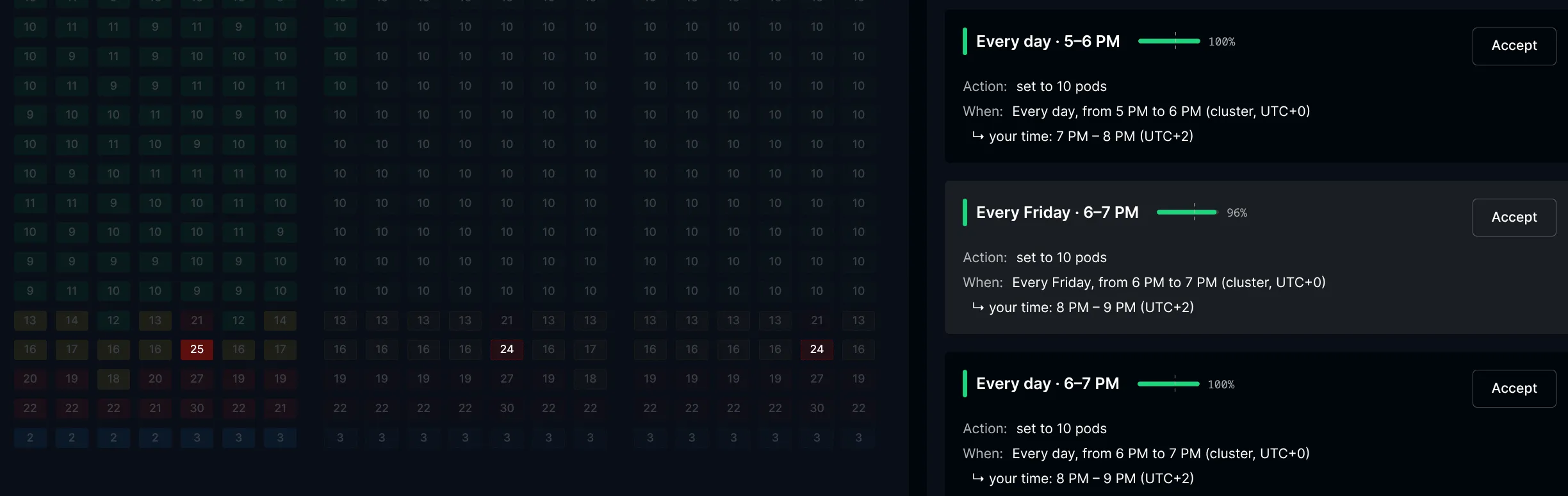

Selecting a suggestion highlights its historical occurrences and affected future windows while dimming unrelated cells.

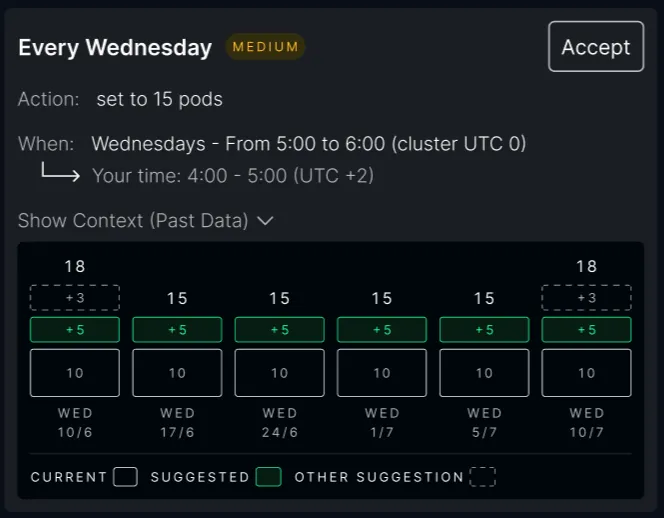

The details view breaks past occurrences into the baseline, the selected pattern’s contribution, and contributions from other simultaneous patterns. This explains why some historical totals can exceed the floor proposed by the selected suggestion.

Timezone handling is explicit: the recurrence remains anchored to the cluster calendar, while the UI also displays the equivalent time for the current operator.

Suggestion lifecycle

State	Effect on scaling	What happens on the next model update
Suggested	None	Candidate may be replaced by new analysis
Accepted	Creates an active recurring schedule	Accepted value remains unchanged
Cancelled	Schedule becomes inactive	Record remains as history; a current candidate may appear again
Expired	No longer active	Old record remains as history

Acceptance is intentionally a snapshot. Nightly forecasting may change the candidate, but it cannot silently change a production floor an operator already approved.

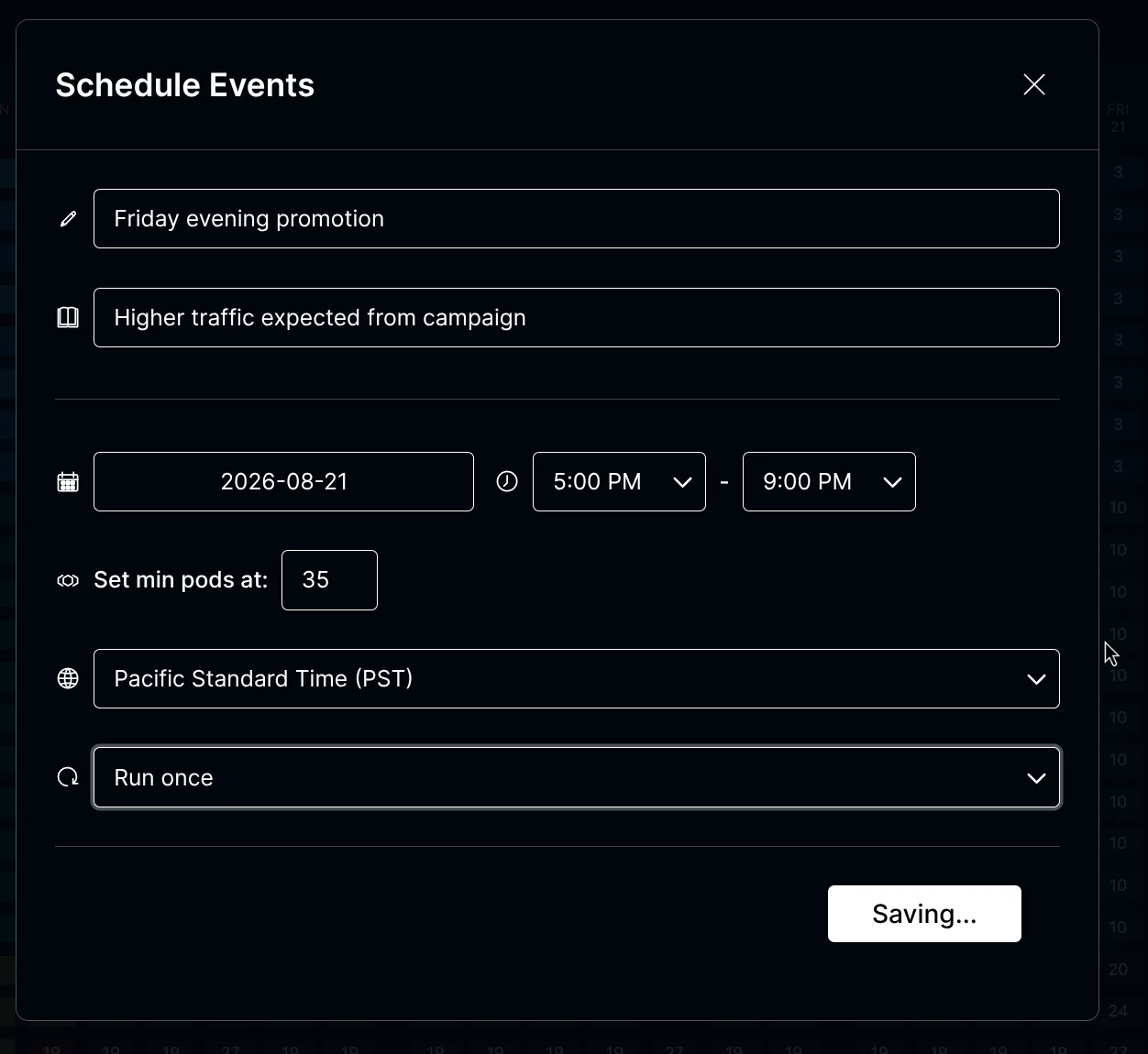

Add a custom schedule

Use a custom schedule when upcoming demand is known but absent from history, such as a promotion, broadcast, migration, or planned batch job.

A custom schedule contains:

• a name;
• start time and duration;
• IANA timezone;
• minimum instance count;
• an optional iCalendar RRULE recurrence.

Start time, duration, and schedule windows

Custom schedules use the window configured by PLT_SCALER_TIME_WINDOW_MINUTES (60 minutes by default):

• startsAt must fall on a time-window boundary in timezone, with zero seconds and milliseconds.
• durationMinutes must be at least one time window, a whole multiple of the time-window size, and no more than 1,440 minutes.
• Each occurrence is expanded into one scheduled slot per covered time window.

With the default 60-minute window, a start at 17:00 and a duration of 240 minutes produce four scheduled windows: 17:00–18:00, 18:00–19:00, 19:00–20:00, and 20:00–21:00. A 17:30 start is invalid. If the window is configured to 30 minutes, 17:30 is valid and a 90-minute duration covers three windows.

The timezone’s UTC offsets must also be divisible by the configured time-window size. Recurring occurrences retain their local time across daylight-saving changes.

Schedule a one-time event

Omit rrule to create exactly one occurrence. This request keeps at least 35 instances running from 17:00 until 21:00 UTC on August 21, 2026:

curl -X POST "$ICC_URL/scaler/user-schedules" \
  -H "authorization: Bearer $DEPLOY_TOKEN" \
  -H "content-type: application/json" \
  -d '{
    "name": "Product launch",
    "startsAt": "2026-08-21T17:00:00.000Z",
    "durationMinutes": 240,
    "timezone": "UTC",
    "minPods": 35
  }'

Setting "rrule": null has the same effect as omitting it.

Schedule recurring events with RRULE

Add rrule to repeat the event. startsAt supplies the recurrence’s earliest date and local start time; durationMinutes applies independently to every occurrence.

Schedule	RRULE
Every day	FREQ=DAILY
Every weekday	FREQ=WEEKLY;BYDAY=MO,TU,WE,TH,FR
Every Friday	FREQ=WEEKLY;BYDAY=FR
Every second Friday	FREQ=WEEKLY;INTERVAL=2;BYDAY=FR
The 15th of every month	FREQ=MONTHLY;BYMONTHDAY=15
The last day of every month	FREQ=MONTHLY;BYMONTHDAY=-1
Every Friday, stopping after eight occurrences	FREQ=WEEKLY;BYDAY=FR;COUNT=8

For example, add this field to the previous request to repeat the four-hour floor every Friday:

"rrule": "FREQ=WEEKLY;BYDAY=FR"

Use startsAt, rather than BYHOUR, BYMINUTE, or BYSECOND, to set the occurrence time. RRULEs that override the time or produce intervals that do not align with the configured time-window size are rejected.

Cancel a custom schedule

Cancel it without deleting its history:

curl -X DELETE "$ICC_URL/scaler/user-schedules/$SCHEDULE_ID" \
  -H "authorization: Bearer $DEPLOY_TOKEN"

The application-specific Scaler API used by ICC also exposes Planner history, forecasts, suggestion details, acceptance, and cancellation under /scaler/applications/:applicationId/.

How overlapping schedules are resolved

The Planner turns accepted suggestions and custom events into one schedule format. The scheduler expands every recurrence into concrete planning windows and chooses one floor for each window.

Priority	Schedule type	Example
1	Custom schedule	One-time promotion or operator-defined recurrence
2	Scoped learned pattern	Friday 17:00–18:00
3	Daily learned baseline	Every day 17:00–18:00

At the same priority, the more specific calendar rule wins. If specificity is equal, the higher minimum wins.

For example:

Matching schedules	Winning floor
Daily 13 + Friday 21	21 on Friday; 13 on other days
Daily 13 + Friday 21 + promotion 35	35 during the promotion
Promotion ends while Friday rule remains	Falls back to 21

The winning value is always clamped to the application’s hard scaling limits.

How the floor is applied

The scheduler maintains a concrete plan for the configured forecast horizon. On each scheduler tick, ICC:

1. finds the scheduled slot active for the application;
2. writes its minimum as a temporary soft limit in Valkey;
3. combines the soft floor with the application’s hard range;
4. asks the application controller to scale immediately when replicas are below the effective minimum.

The resulting behavior is:

Hard range	Scheduled floor	Live V2 demand	Effective target
3–40	None	8	8
3–40	21	8	21
3–40	21	25	25
3–25	35	20	25

When the window ends, the soft floor is removed and V2 can scale down according to live demand. Temporary limits expire automatically if scheduler updates stop, preventing a stale floor from remaining active indefinitely.

See Scaling Configuration for collection intervals, window size, percentile, prediction horizon, timezone, and scheduler settings.
